Lineup
ADVANCE BF Lineup
ADVANCE BF in Imperial units(PSI, deg F) has been terminated.
ADVANCE BF are available in Imperial units(PSI, deg F) and SI units(kPa, deg C).
White, red, and blue illumination colors are available in SI units. The illumination color cannot be switched. Only red is avaiable in USDM series.
Pictures may differ from the real products by processes and photography conditions, etc.
The gauge diameter is 2 3/8in (60mm). 3 1/8in (80mm) tachometer is also available.
| Model | USDM series (Imperial unit) color: amber red |
JDM series (SI unit) color: white/Amber red/blue |
||
| Turbo/Boost | PSI, inHg | A | kPa | A |
| Intake manifold press | PSI, inHg | N/A | kPa | A |
| Oil press | PSI | A | kPa | A |
| Fuel press | PSI | A | kPa | A |
| Oil temp | deg F | A | deg C | A |
| Water temp | deg F | A | deg C | A |
| Exhaust Temp | deg F | A | deg C | A |
| Tachometer | RPM | A | RPM | A |
| A: AVAILABLE | N/A: NOT AVAILABLE |
USDM Lineup
Click pictures to enlarge.
| Size | 2 3/8″, 60mm | ||

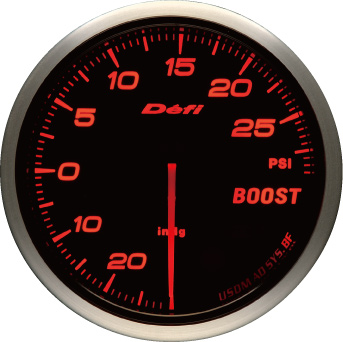

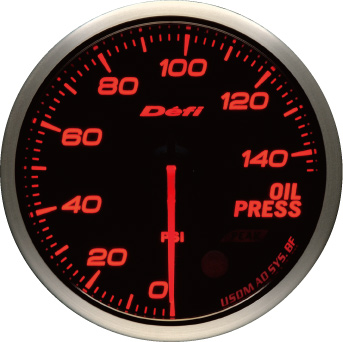

| Model | Boost | Oil press | Fuel press |
| Image |  |
 |
 |
| Illumination color | Amber red | Amber red | Amber red |
| Parts No. | DF09904 | DF10204 | DF10304 |
| Display range | -30inHg to 29PSI | 0 to 145PSI | 0 to 87PSI |
| Size | 2 3/8″, 60mm | ||

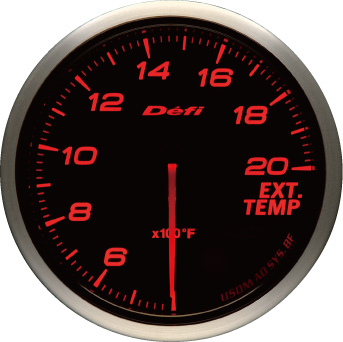

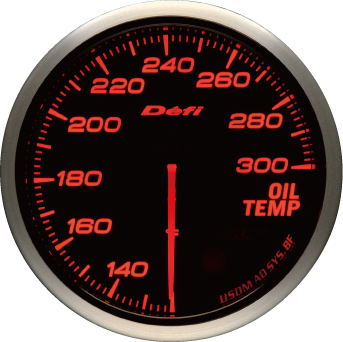

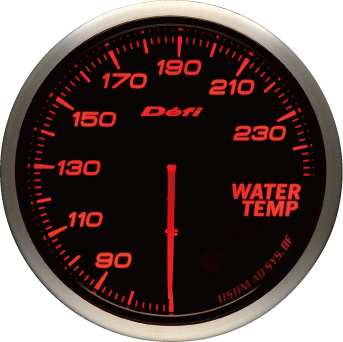

| Model | Oil temp | Water temp | Exhaust Temp |
| Image |  |
 |
 |
| Illumination color | Amber red | Amber red | Amber red |
| Parts No. | DF10404 | DF10504 | DF10604 |
| Display range | 122 to 302 degF | 68 to 248 degF | 392 to 2010 degF |
Components
Please refer to the ADVANCE BF SI model pages for components and other information.
