Features
- Interactive communication advanced system is implemented. What is ADVANCE System?
- Gauges can be controlled from distance with the included switch unit.

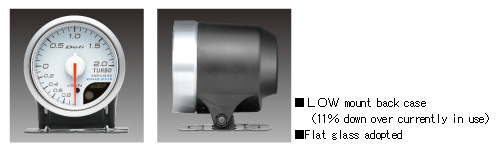

- Flat glass and precise graduation scale give more needle accuracy and high visibility.
- Opening and closing modes can be selected from 2 variations.
- The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
- The illumination at night can be switched between 2 different colors.
(White dial: amber red / blue; Black dial: white / amber red)
- The outer edge of the gauge illuminates in red at night.
- The needle pointer driven by original stepping motor has a smooth instantaneous response to rapid acceleration of high performance vehicles.
- The microcontroller calibrates up to 270 degree angle in 3027 – 4600 segments (0.088°- 0.059°), and provides accurate vehicle information.
- Self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit and serial communication errors.
- Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
- Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
- A mounting bracket, meter cup, regular position bezel are provided with this product.
- With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.
