Specification

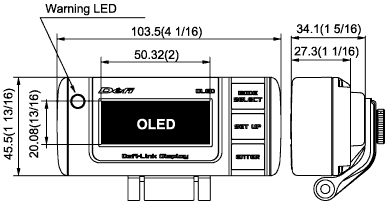

| SIZE in mm(inches) |  |
||||||||||||
| Power supply voltage | 8.5V to 13.5V DC (for use 12V Vehicles Only, voltage supplied by Defi-Link Control Unit II or Defi-Link Control Unit) |
||||||||||||
| Current consumption | IGN ON: Max. 0.2A ILM ON: Max. 0.2A |
||||||||||||
| Display Range |
|
||||||||||||
| Corresponding Speed Pulse |
2, 4, 8, 16, Pulse Free(1,274pulse/km ~ 16,562pulse/km, 2,051pulse/mile ~ 16,665pulse/mile) |
||||||||||||

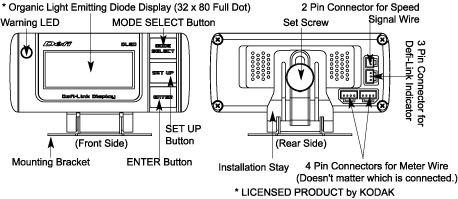

| Part Names |  |
||||||||||||
| NOTE | *This products is for only on vehicles with a 12V electrical system. Never use this product on 24V vehicles. *Products can not be installed in altered vehicles. *To install pressure or temperature sensors, proper sensor attachments are necessary. |
, 123 to 302
