Specification

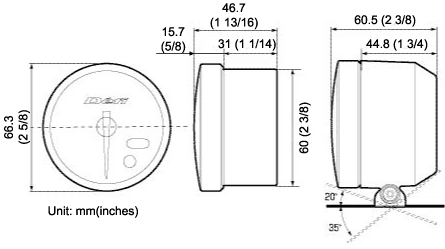

| Size |
|
|
| Power supply voltage |
DC10 to 15V(Exclusive for 12V vehicle) | |
| Current consumption |
+B(Ignition on) Maximum(six gauges) 2.5A |
|
| Display Range SI |
Turbo | -100kPa ~ +200kPa |
| Intake Manifold | -100kPa ~ +20kPa | |
| Oil Press | 0 ~ 1000kPa | |
| Fuel Press | 0 ~ 600kPa | |
| Oil Temp | 50 ~ 150 |
|
| Water Temp | 20 ~ 120 |
|
|
Ext Temp |
200 ~ 1100 |
|
| Display Range Imperial |
Turbo | -30inHg ~ 28PSI |
| Intake Manifold | -30inHg ~ +2PSI | |
| Oil Press | 0 ~ 140PSI | |
| Fuel Press | 0 ~ 85PSI | |
| Oil Temp | 120 ~ 300 |
|
| Water Temp | 70 ~ 245 |
|
|
Ext Temp |
400 ~ 2000 |
|
| Note | *Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. *Products can not be installed in altered vehicles. *To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors differ depending on products. Refer to manual. |
|
