Defi-Link Meter Specification

Defi-Link Meter

Specification

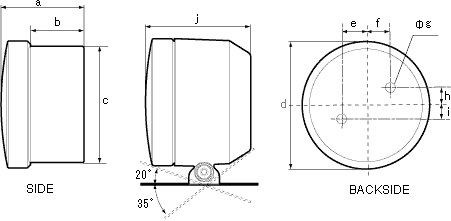

Size

Unit:mm(1mm=0.039in)
Diameter	52	60	80	115
a	42	42	47	59
b	26.5	26.5	36.7	47.3
c	52	60	80	115
d	58	66	87	125
e	20	20	20	18.7
f	20	20	20	35
g	M3	M3	M3	M4
h	6.5	6.5	6.5	38.2
i	6.5	6.5	6.5	17.6
j	55	57	60	69

Illuminatino color

Green

Power supply
voltage

DC10 to 15V(Exclusive for 12V vehicle)

Current
consumption

+B(Ignition on) Maximum(seven gauges) 2.5A

Display Range
(SI Units)

Turbo

-100kPa ~ +200kPa

Intake Manifold

-100kPa ~ +20kPa

Oil Press

0 ~ 1000kPa

Fuel Press

0 ~ 600kPa

Oil Temp

50 ~ 150

Water Temp

20 ~ 120

Ext Temp

200 ~ 1100

Tachometer
60mm(2 3/8in)

0 ~ 9000rpm

Tachometer
80mm(3 1/8in), 115mm(4 1/2in)

0 ~ 11000rpm

Display Range
(Imperial Units)

Boost

-30inHg ~ 28PSI

Oil Press

0 ~ 140PSI

Fuel Press

0 ~ 85PSI

Oil Temp

120 ~ 300

Water Temp

70 ~ 245

Ext Temp

400 ~ 2000

Applicable Number of Cylinders

Defi-Link Control Unit II (DF05001) 3, 4, 5, 6, 8
Defi-Link Control Unit II Version 2.0 (DF05002) 1, 2, 3, 4, 5, 6, 8

NOTE

*Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles.
*Tachometer can not be installed in diesel vehicles.
*Tachometer can not be installed in vehicles without a engine revolution signal.
*Products can not be installed in altered vehicles.
*To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors differ depending on products. Refer to manual.
