Specifications
3 1/8in(80mm) series
| Power supply voltage |
DC10 to 15V(Exclusive for 12V vehicle) |
| Current consumption |
+B(Ignition on) Maximum(six gauges) 2.5A |
| Applicable Number of Cylinders | 1, 2, 3, 4, 5, 6, 8 |
|

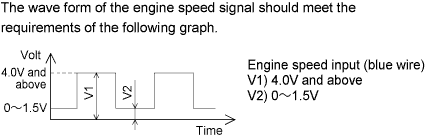

Applicable Engine speed Pulse |
 |
| Display Range | 0~9000RPM, 0~11000RPM |

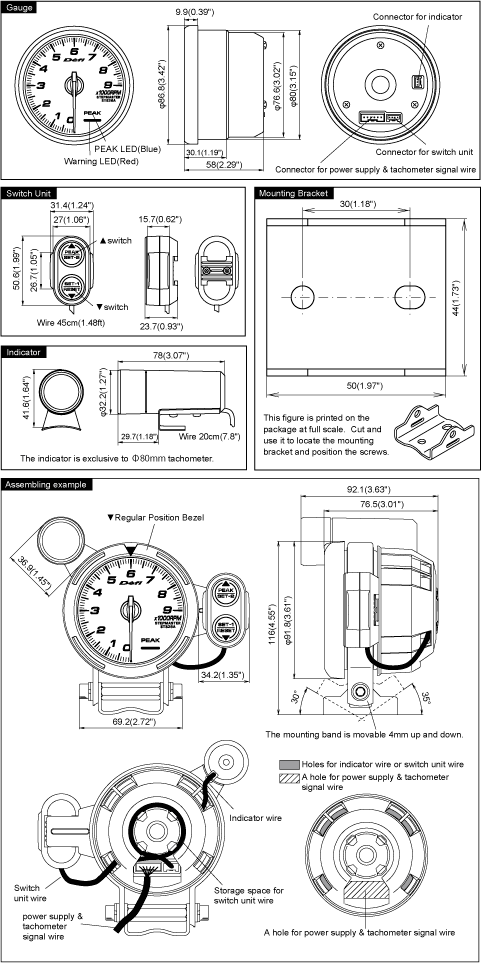

| Size and part names |  |
| NOTE | *Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. *Products can not be installed in altered vehicles. |
